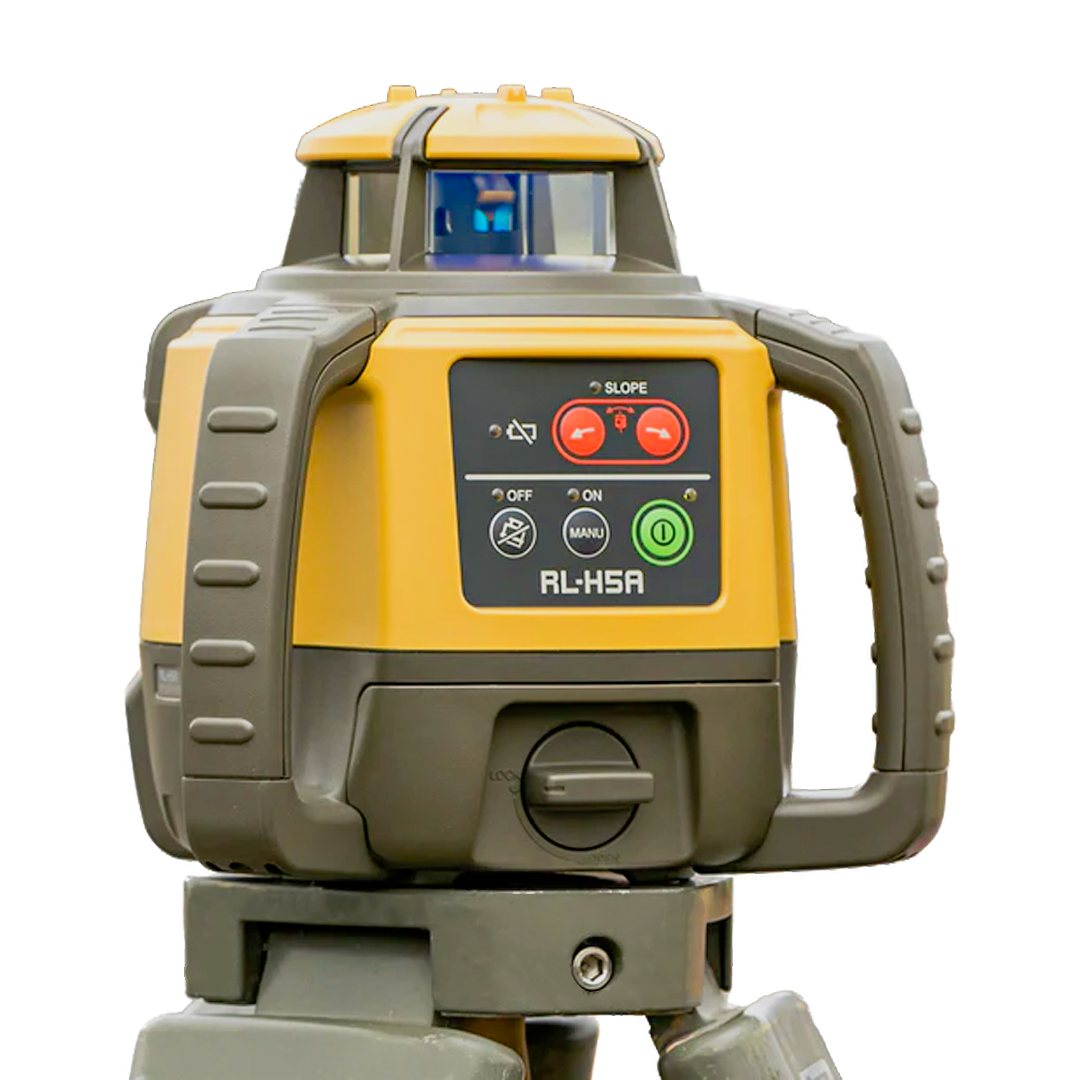

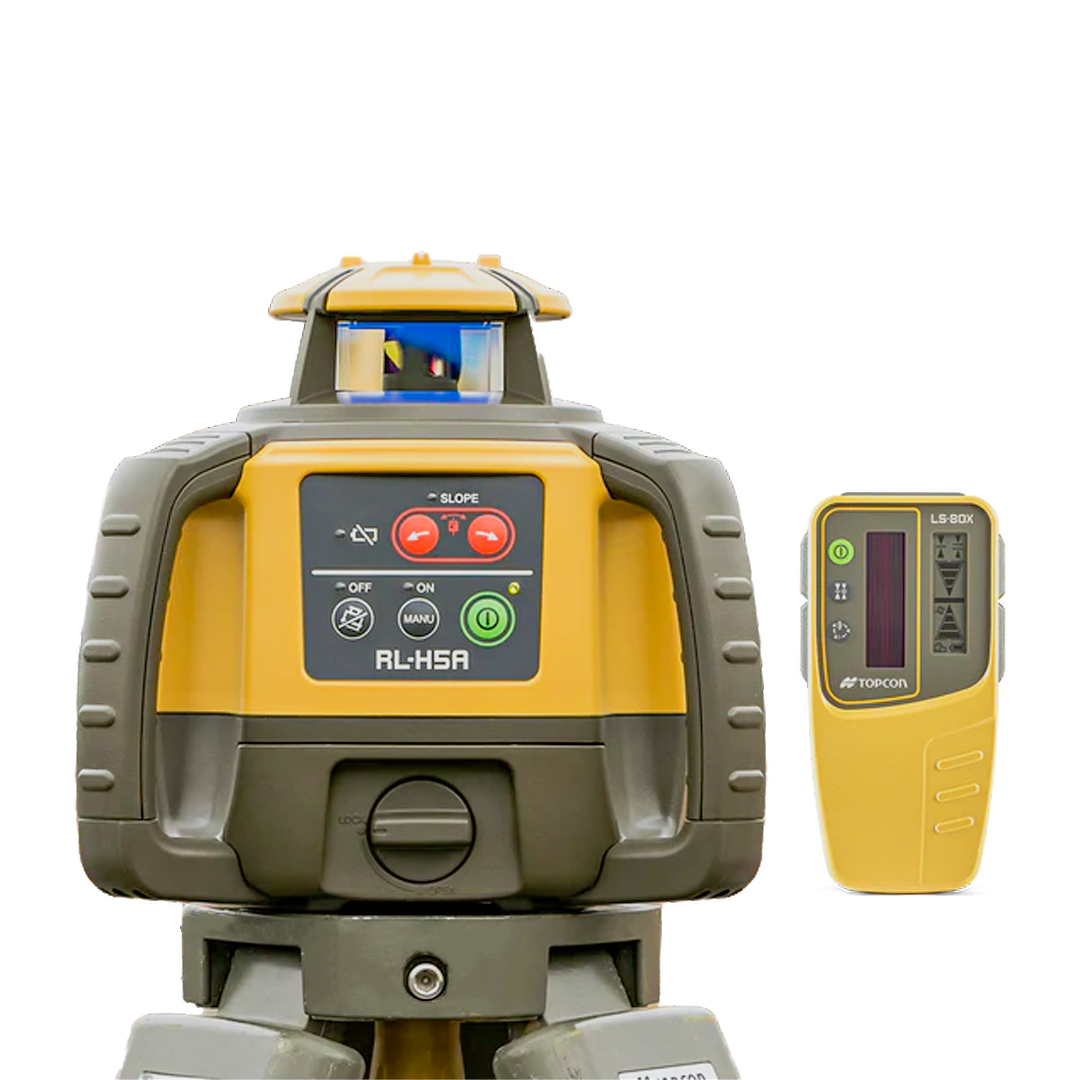

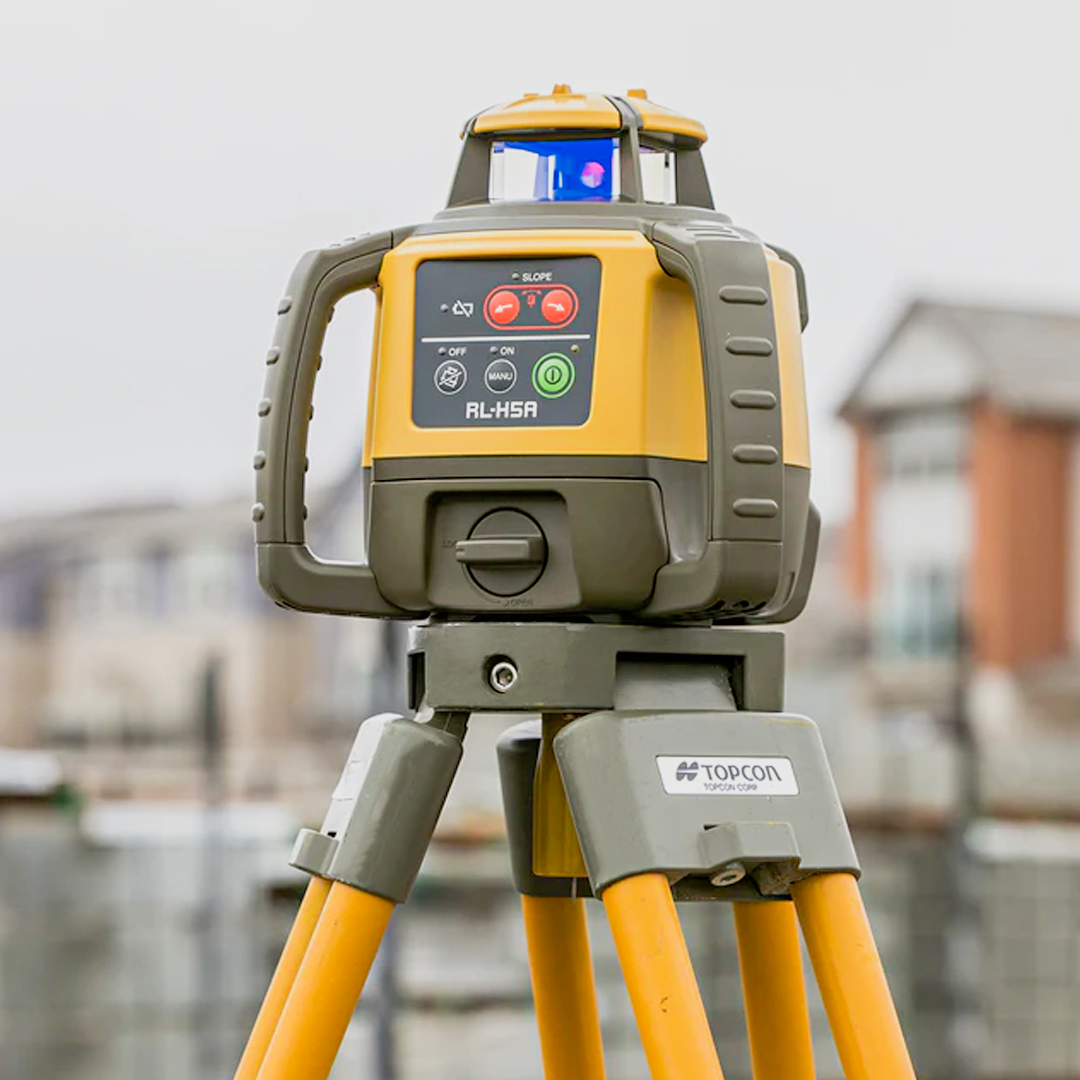

The Topcon RL-H5A Rotary Laser, paired with the LS-80X Receiver, is designed for precise leveling in construction, landscaping, and sitework. The RL-H5A emits a highly accurate horizontal laser beam with an impressive range of up to 2,600 feet. It self-levels within ±5 degrees and offers exceptional accuracy of ±1/16 inch at 100 feet, ensuring reliable results in demanding environments. The included LS-80X Receiver easily detects the laser beam in both horizontal and vertical orientations, featuring a large, user-friendly LCD display with a built-in bubble level for quick setup and operation. This combination of the RL-H5A laser and LS-80X receiver provides professionals with the essential tools for efficient and accurate leveling tasks.

RL-H5A Laser
Performance and Specifications
Working Range (Diameter)Up to 2,600 feet (800 meters) with detector
Rotation Speed600 RPM
Accuracy and Leveling
Accuracy±1/16 inch at 100 feet (±1.5 mm at 30 meters)
Self-Leveling Range±5 Degrees
Battery and Power
Battery LifeApproximately 100 hours (alkaline batteries)
Physical Characteristics
Operating Temperature Range-4°F to 122°F (-20°C to 50°C)
Water and Dust ProtectionIP66 rating
Dimensions7.7" x 8.3" x 6.9" (195 x 210 x 175 mm)
Weight5.5 lbs (2.5 kg)
Laser Specifications
Laser Diode635nm (visible)
Laser Class3R

  • RL-H5A Laser
  • LS-80X Sensor
  • Sensor Holder
  • Carry Case

  • 5 Year Warranty
