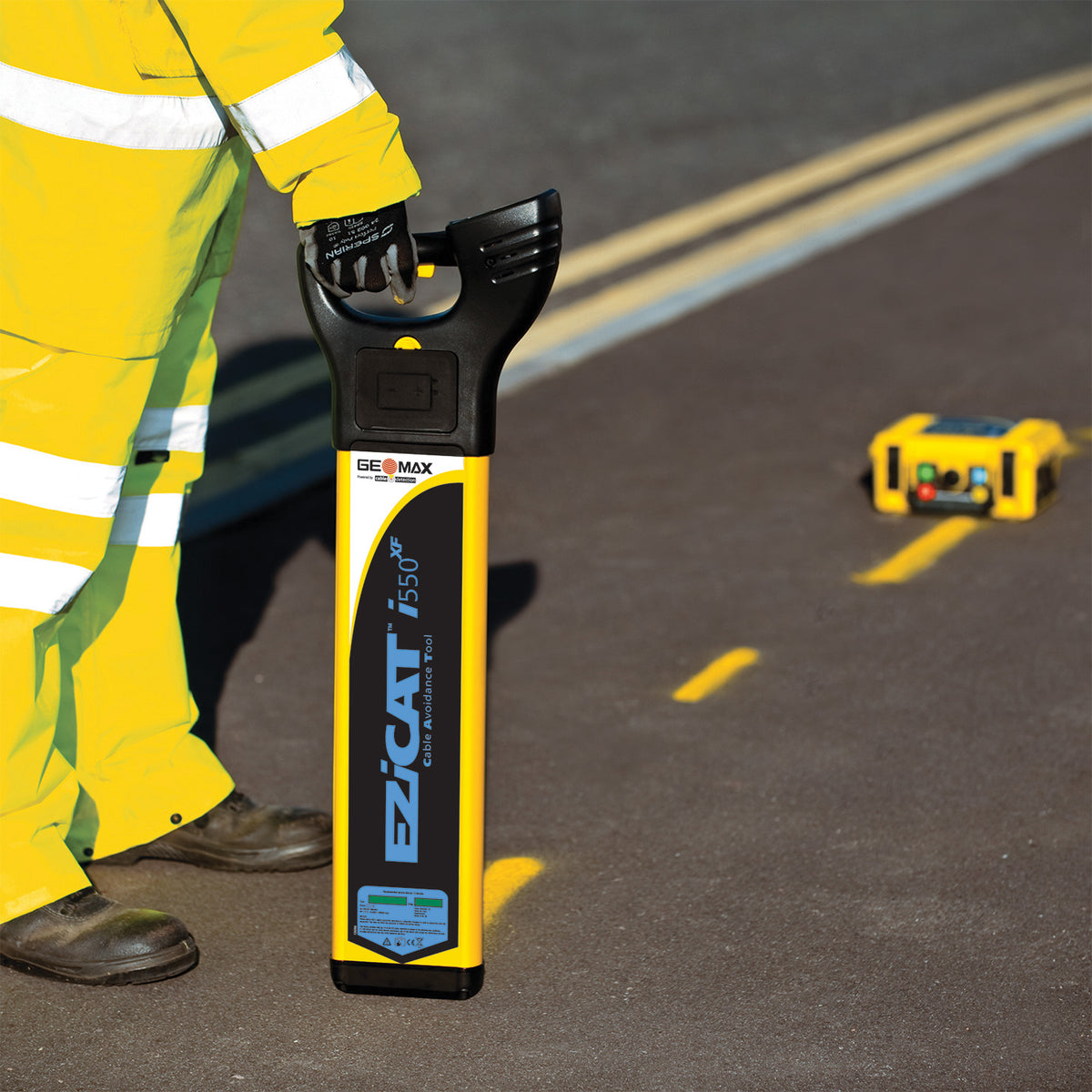

Locate and trace buried utilities faster with this GeoMax EZiSYSTEM bundle, combining the EZiCAT i550 locator, EZiTEX t100 transmitter, 100 mm (4 in) transmitter clamp, and a dedicated carry bag. The EZiCAT i550 includes Automatic Pinpointing, which automatically adjusts sensitivity as you work, helping you stay on the optimum setting without constant manual tweaks for quick, effective locating at varied depths.
The compact, rugged EZiTEX t100 dual frequency transmitter is designed to pair with EZiCAT locators to help you avoid, trace, and locate buried cables and pipes with improved accuracy. For conductive utilities, the lightweight 100 mm (4 in) clamp applies a traceable 33 kHz signal by clamping around the line while the transmitter energizes it, so the locator can detect and follow the signal. Everything packs up securely in the durable EZiSYSTEM carry bag for safe storage, transport, and jobsite protection.
| GeoMax EZiCAT i550 60Hz | |
|---|---|
| Power | 60Hz |
| Radio | 15kHz to 60kHz |
| Auto | Power, Radio, 33kHz |
| Transmitter mode | 32.768 (33) kHz, 8.192 (8) kHz |
| Depth range | Line or Sonde 0.1m to 3m |
| Depth accuracy* | 10% |
| Battery | 6 x AA Alkaline (IEC LR6) supplied |
| Battery operating time | 40 h intermittent use (at 20°C) |
| Dimensions (HxWxD) | 760 x 250 x 85mm |
| Weight with batteries | 2.7Kg |
| *Depth to an undistorted signal | |
| Geomax Ezitex t100 signal transmitter | |
|---|---|
| Frequency | 8kHz, 33kHz |
| Protection | IP67 Case lid closed, IP65 Case lid open |
| Connection Power Output (when connected to a buried utility with an impedance of 300 Ω) | Up to 1W max |
| Induction Power Output | Up to 1W max |
| Power Output Control | 4 power level setting |
| Batteries | 4 x D alkaline (IEC LR20) supplied |
| Battery operating time | 30 h intermittent use (at 20°C) |
| Weight & dimensions | 2.5 kg - 113mm (H) x 206mm (D) x 250mm (W) |
- GeoMax EZiCAT i550 60Hz
- Geomax Ezitex t100 signal transmitter
- 100mm (4 inches) Transmitter clamp
- Geomax Ezisystem Carry Bag
- User Manual
- 1-Year Warranty for EZiCAT i550 and Ezitex t100
- 90 Day Warranty for Transmitter clamp and carry case
- Any warranty claims must be accompanied by proof of purchase from James River Laser.
- Unopened and unused items may be returned within 15 days of purchase for a full refund.
- A 10% to 20% restocking fee will apply after 15 days.
- Returns must be accompanied by the original proof of purchase from James River Laser.
- To learn more, visit the Return and Replacement Policy Page (Link).
- If your order arrives damaged, please notify us within 48 hours of receipt.
- Defective or damaged items may be replaced for the same product within 15 days of purchase.
- Replacements are subject to product availability.
