REX Pipe & Cable Locator

Schonstedt Pipe and Cable Locators SKU REX
Regular price
$3,718.00
rex receiver
Regular price
$3,718.00

Rex stands out as an ideal tool for locating a wide array of underground utilities including water and sewer lines, electric, telecom, and gas utilities. Its transmitter showcases a sleek, ultra-thin design, measuring less than 2 inches in thickness and weighing under 4 lbs. The entire system, including the receiver, has an ultralight build, with a total weight of just over 7 lbs, making it highly portable and easy to handle. The compactness of the receiver, which retracts for convenience, complements its portability. The transmitter is equipped with rechargeable batteries, and the system comes with Schonstedt's 3-year warranty. Rex is optimized for locating utilities such as water, sewer, and gas pipes, as well as electric and telecommunication cables.

Receiver
Operating Frequency: Active: 512 Hz, 33 kHz and 82 kHz;
Passive: 50 or 60 Hz; Sonde: 512 Hz
Battery One 9V battery
Battery Life: 12 hours (intermittent use)
Weight (incl. batteries): 2.8 lbs (1.25 kg)
Operating Temp: -4°F to 140°F (-20°C to 70°C)
Water and Dust Resistance: Rated IP54
Dimensions: Closed:
17.5" (~44 cm)

Extended:
Extended: 27.7" (~70 cm)
Max. Depth Capability: Approximately 19' (5.8 m)
Sonde mode - approximately 5’ - 15’ (1.5 m to 4.2 m)

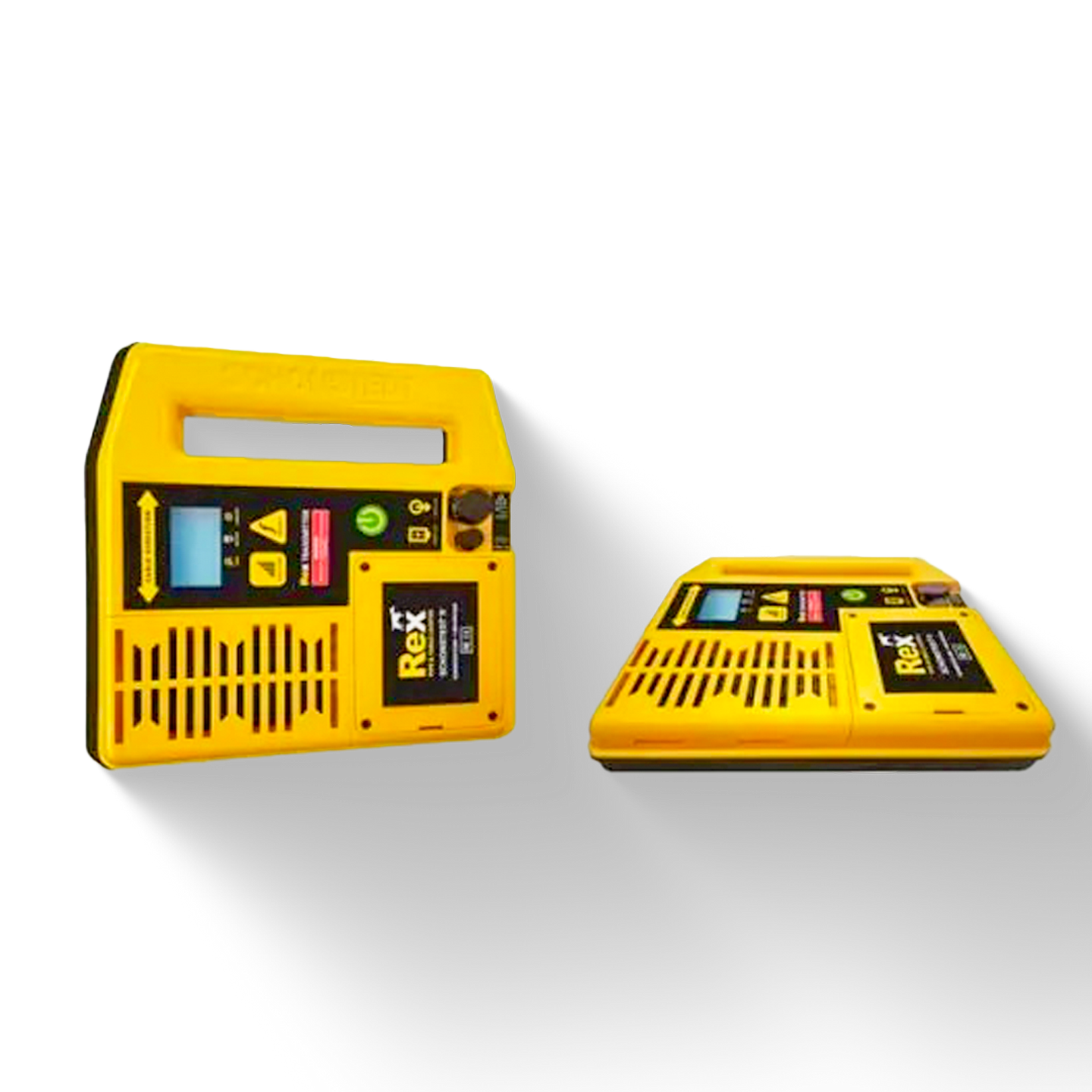

Transmitter
Operating Frequency: 82kHz, 33kHz & 512 Hz
Operating Modes: Conductive, Inductive, and Inductive Clamp
Max. Output Power:
(Conductive mode @ 1000 Ω load)
512 Hz - 1/2, 1, 2 or 5 W
33 kHz - 1/2, 1, 2 or 5 W
82 kHz - 1/2 or 1
Battery Type: Rechargeable NiMH pack (12V)
Battery Life: 8 Hours (intermittent use)
Charging: Internal Smart Charger powered by AC/DC power adapter
Dimensions 10” x 10.25” x 1.75”
(25.4 cm x 26 cm x 4.5 cm)
Weight (incl. batteries): 3.5 lbs (1.6 kg)
Operating Temp: -4°F to 140°F (-20°C to 70°C)
Backlighting: White LED array
Water and Dust Resistance: Rated IP54

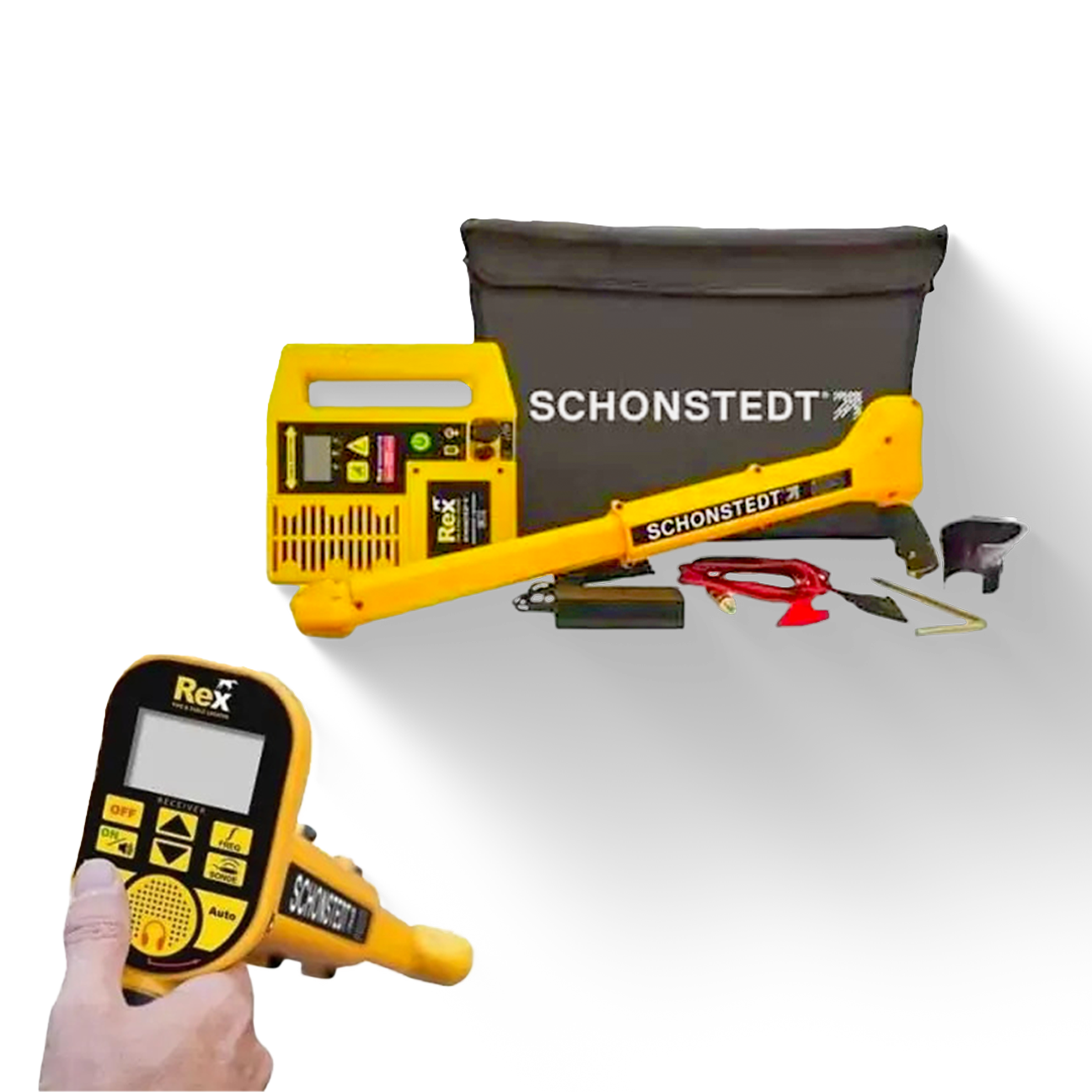

  • Rex Receiver
  • REX Tx-6 Transmitter
  • Ground stake
  • Power supply
  • Conductive clips assembly
  • Holster clip

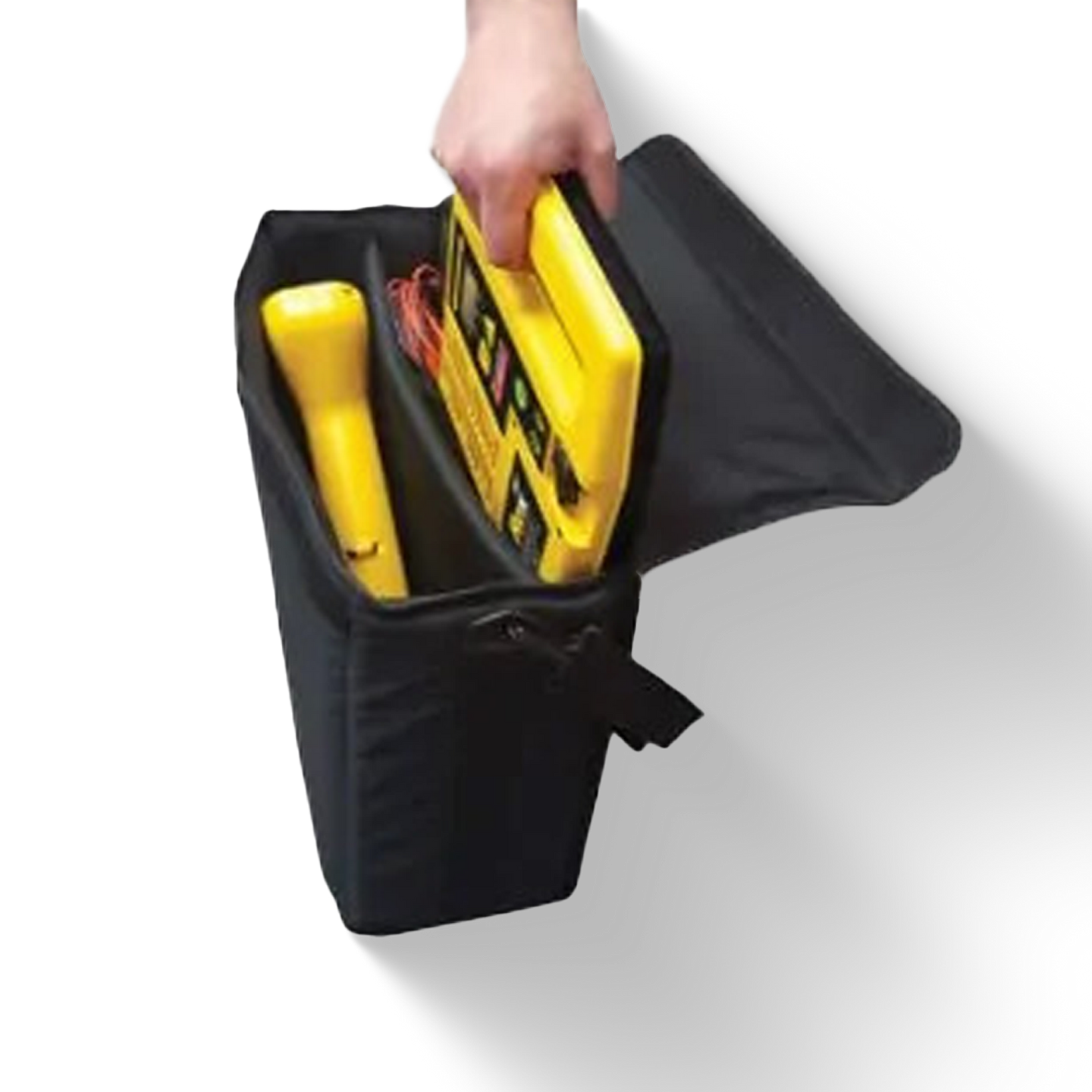

  • Padded carry case

  • 3 Year Warranty
